Product description

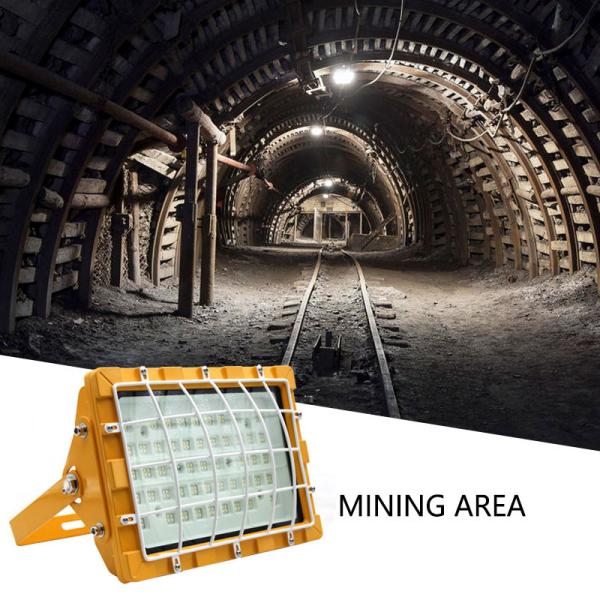

LED tunnel explosion-proof lights provide a safe and reliable lighting solution for hazardous environments. Using efficient LED technology, the LED tunnel explosion-proof lights provide bright and reliable lighting for places such as underground mines. They are usually constructed of strong and durable materials such as aluminum or stainless steel to withstand harsh environmental conditions and often have a high level of safety certification for use in explosive environments.
Features
The product is made up of several key components that work together to deliver high performance results. The structure of the explosion-proof lamp consists of an aluminum alloy die-casting shell, which is then painted with high-voltage electrostatic spraying for added durability. The fasteners used on the product are made of stainless steel, which is highly resistant to corrosion.
The LED explosion tunnel light adopts high borosilicate physical tempered glass transparent cover, and adopts fogging anti-glare design, which increases safety and comfort. It is capable of withstanding high-energy shocks of up to 4J, making it highly resistant to thermal fusion. The light transmittance of the cover is as high as 90%, providing bright and clear illumination.
It has the form of casing flameproof and thread flameproof, which improves its explosion-proof performance and reliability. It has a professionally designed light distribution system that ensures high light efficiency and uniform illumination. The internal protective structure is also professionally designed to ensure the normal operation of the product under harsh conditions.
It has a special constant current and constant voltage power supply with wide voltage input and constant power output. It also has functions such as constant current, open circuit protection and short circuit protection. Its high power factor, cos>0.98, ensures maximum energy efficiency.
Explosion proof lights can be equipped with emergency devices upon request. When the power is cut off, the indicator light will automatically switch to the emergency lighting state. The wiring system of this product is also made of steel pipe, which ensures a safe and reliable connection.
| Product Model | BAD97 |
| Explosion Proof Sign | Exde IICT6 Gb |
| Rated Power | 50-70W | 80-150W | 150-240W |
| Protection Level | IP65 |
| Corrosion Protection Level | WF2 |
| Inlet Thread | G3/4" |
| Incoming Cable | φ7-12mm |
| Work Environment | Temperature: -40~45 ℃
Humidity: 10% -90% |
| Power Factor | ≥0.95 |
| Overall Dimensions | 250*170*150 | 320*225*220 | 460*310*230 |
| Net Weight | 3.35kg | 6kg | 11.5kg |
| Color Temperature | 2700-6500K |
| Color Rendering Index | 80Ra |
| Luminous Flux | 6500-31200lm |
| Working Life | ≥50000H |
